Rice Lake
Rice Lake 18688 RoughDeck® HE Hostile Environment Floor Scale - 5x5HPHE-5K, 5,000 lb, 20', NTEP III, SST, Remote Junction Box
Rice Lake 18688 RoughDeck® HE Hostile Environment Floor Scale - 5x5HPHE-5K, 5,000 lb, 20', NTEP III, SST, Remote Junction Box
SKU:18688
Regular price
$6,778.75 USD
Regular price
$7,975.00 USD
Sale price
$6,778.75 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
The Toughest, Most Accurate Floor Scale Available

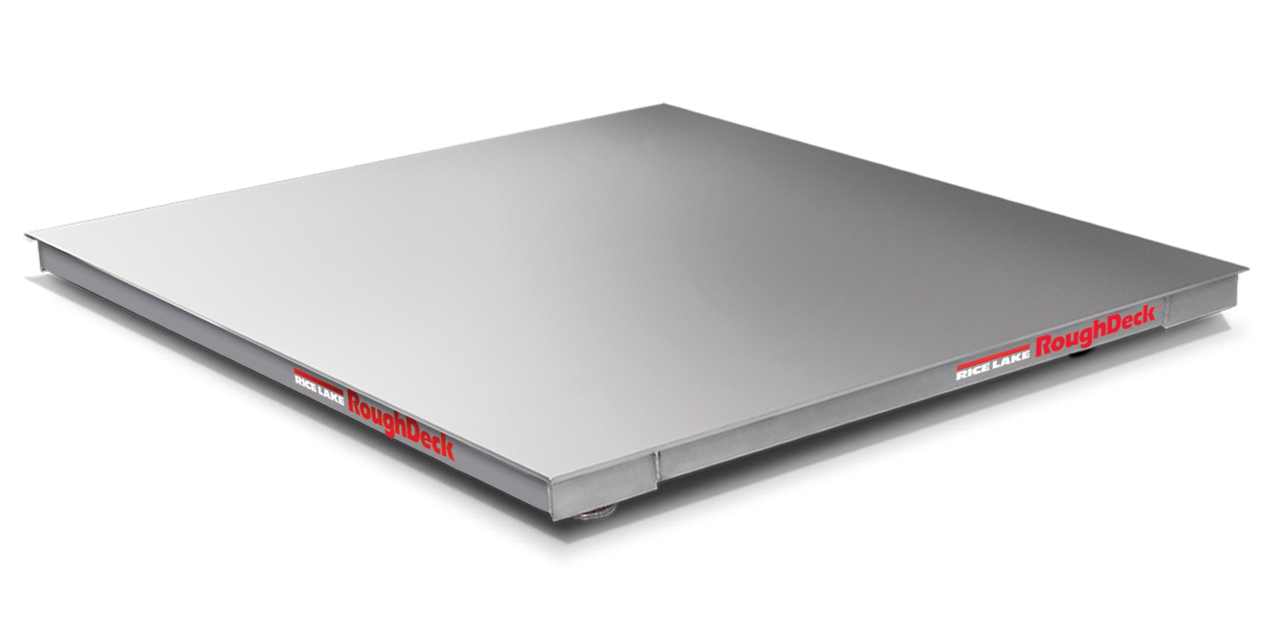

The RoughDeck® HE is a hostile environment, stainless steel floor scale designed specifically for corrosion resistance and long life in demanding washdown applications. Design features include a six-inch, 304 stainless steel channel frame and smooth top plate. The RoughDeck® HE comes standard with four stainless steel, IP67 welded-seal, shear beam load cells, four stainless steel support feet, a stainless steel NEMA Type 4X TuffSeal summing junction box and EL147HE hostile environment load cell cable.
The stainless steel channel frame provides added protection by enclosing load cell cable and load cells, yet provides easy access for installation and service. The NEMA Type 4X summing TuffSeal® junction box can be remotely mounted up to ten feet from the scale, keeping sensitive electronic connections away from moisture and chemicals.
All of our floor scales, unless specified otherwise, are built with lifting holes to assist our dealers during installation, or to later service the scales. The lifting holes are not the same size on all of our scales and in the PDF on the Resources tab, you will find a chart that lists the standard size and quantity of eye bolts needed for our scales.
We are excited to bring you the Rice Lake RoughDeck® HE Hostile Environment Floor Scale. The RoughDeck® HE is a hostile environment, stainless steel floor scale designed specifically for corrosion resistance and long life in demanding washdown applications.
Base Only - Indicator and calibration available separately.
The RoughDeck® HE is a hostile environment, stainless steel floor scale designed specifically for corrosion resistance and long life in demanding washdown applications. Design features include a six-inch, 304 stainless steel channel frame and smooth top plate. The RoughDeck® HE comes standard with four stainless steel, IP67 welded-seal, shear beam load cells, four stainless steel support feet, a stainless steel NEMA Type 4X TuffSeal summing junction box and EL147HE hostile environment load cell cable.
The stainless steel channel frame provides added protection by enclosing load cell cable and load cells, yet provides easy access for installation and service. The NEMA Type 4X summing TuffSeal® junction box can be remotely mounted up to ten feet from the scale, keeping sensitive electronic connections away from moisture and chemicals.
All of our floor scales, unless specified otherwise, are built with lifting holes to assist our dealers during installation, or to later service the scales. The lifting holes are not the same size on all of our scales and in the PDF on the Resources tab, you will find a chart that lists the standard size and quantity of eye bolts needed for our scales.
We are excited to bring you the Rice Lake RoughDeck® HE Hostile Environment Floor Scale. The RoughDeck® HE is a hostile environment, stainless steel floor scale designed specifically for corrosion resistance and long life in demanding washdown applications.
- Rugged washdown design
- 304 stainless steel construction
- Rigid 304 stainless steel channel frame
- Four stainless steel, welded-seal, IP67 shear beam load cells
- 20 ft of SURVIVOR® EL147HE hostile environment load cell cable
- Remote TuffSeal® JB4SS stainless steel, NEMA Type 4X junction box with signal trim card for remote mounting
- Load cells protected on all four sides
- Smooth stainless steel deck
Base Only - Indicator and calibration available separately.
Order Now or Call an Industrial Scale Specialist Toll Free at 877-65-SCALE !
Brochures
rice-lake-weighing-systems-auto-lift-he-hostile-environment-floor-scale-brochure rice-lake-weighing-systems-auto-lift-he-hostile-environment-floor-scale-specs
Downloads
| Description Tag | Rice Lake 18688 RoughDeck® HE Hostile Environment Floor Scale - 5x5HPHE-5K, 5,000 lb, 20', NTEP III, SST, Remote Junction Box |
|---|---|
| ID | 7566 |
| Width | 0 |
| Depth | 0 |
| Height | 0 |
| Price | 7975 |
| Cost Price | 0 |
| Retail Price | 0 |
| Sale Price | 6778.75 |
| Tax Class ID | 0 |
| Brand ID | 158 |
| Condition | New |
| View Count | 124 |
| SKU | 18688 |
| Custom Product | false |
| Capacity-1 | 5000lb |
| UDF Name 1 | END LOAD CAPACITY |
| UDF Name 2 | CABLE LENGTH |
| UDF Name 3 | THREADED EYEBOLT |
| UDF Value 1 | 100% full scale at 2,000 lb and 5,000 lb 80% full scale at 10,000 lb |
| UDF Value 2 | 20 ft (6.1 m) |
| UDF Value 3 | Hole (1/2-20 NF) located in center of deck for easy lifting |
| Cart Price | 4645.2500 |
| Amazon Brand | Rice Lake |
| Options Capacity | 5x5 HPHE-5000lb w/Remote Junction Box |
| Brand Google | RICE LAKE WEIGHING SYSTEMS |
| Ship Length | 50.0000 |
| Ship Width | 50.0000 |
| Ship Height | 30.0000 |
| CAPACITY | 5000lb |
| UDF Name 1 | END LOAD CAPACITY |
| UDF Name 2 | CABLE LENGTH |
| UDF Name 3 | THREADED EYEBOLT |
| UDF Value 1 | 100% full scale at 2,000 lb and 5,000 lb 80% full scale at 10,000 lb |
| UDF Value 2 | 20 ft (6.1 m) |
| UDF Value 3 | Hole (1/2-20 NF) located in center of deck for easy lifting |
| Cart Price | 4645.2500 |
| Amazon Brand | Rice Lake |
| Available Options | 5x5 HPHE-5000lb w/Remote Junction Box |
| Brand | RICE LAKE WEIGHING SYSTEMS |
| Dimension Length | 50.0000 |
| Dimension Width | 50.0000 |
| Dimension Height | 30.0000 |
