Rice Lake RoughDeck AX Axle Scale

Durable, Accurate Axle Scale

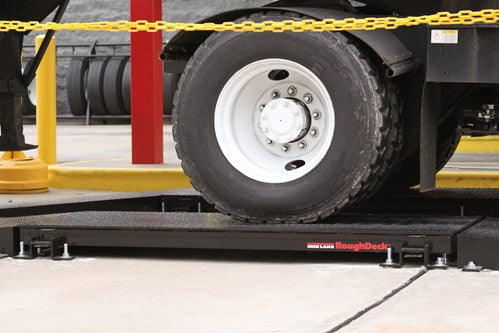

Maintain accuracy and accountability even in temporary site applications with the RoughDeck AX. This portable, economical option for vehicle and truck weighing is built tough, using time-tested Rice Lake construction. The RoughDeck AX provides a durable and consistent scale for monitoring overloaded and underloaded axle weight.

The RoughDeck AX system includes four on/off ramps and two treaded top plate platforms. Two tandem scale platforms provide axle capacity measurement up to 60,000 pounds. Combined with the TuffSeal® signal trim junction box and SURVIVOR EL147HE cable, the RoughDeck AX system is the ideal portable solution for onsite vehicle weighing.

• The system includes two platforms with anchor brackets and four on/off ramps with anchor tabs (anchor bolts not included)

• (L × W × H): 84 × 32 × 6 in
• Axle capacity, tandem platforms: 60,000 lb (two scales 30,000 lb each)
• Includes (2) 3/4-10 NC eye bolts for lifting scale during installation
• Contains four environmentally sealed, IP67 20,000 lb single-ended shear beam load cells per platform
• Treaded top plate with side access junction box
• JB4SS TuffSeal® signal trim junction box
• Top access foot adjustment holes
• Carbon steel captured ball feet
• 20 ft SURVIVOR® EL147HE cable
• Non-Legal for Trade

• (L × W × H) 60 × 32 × 6 in
• Treaded top plate
