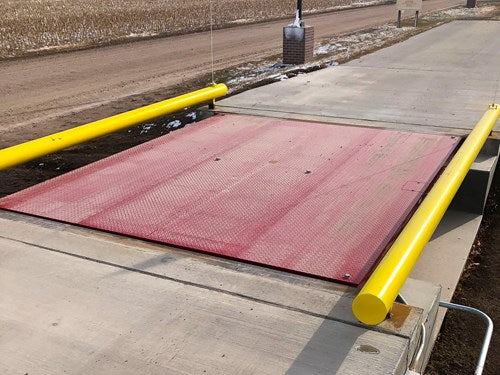

Axle Scale Built to Last

The RoughDeck® AX-1 axle scale's double steel decks provide rugged durability in challenging places.

Designed for Durability

The RoughDeck AX-1 is designed with a top and bottom steel plate that provides structural strength creating a more rigid weighing scale—leading to more accurate weighing. With driver safety in mind, the AX-1 top plate is diamond tread and the wide, one-piece design makes it easier to drive vehicles on and off. The RoughDeck AX-1 axle scale is offered in three standard sizes with custom sizes available for unique applications.

Accuracy On-Site

Axle scales are compact and can be put in service in a variety of locations, increasing site options for weighing. If you have a location that requires a unique size, Rice Lake can create axle scales in custom sizes and capacities. The AX-1 is the perfect choice for industries that require non-Legal for Trade seasonal
weighing. It can be moved and stored when not in use during the off-season.

Durable Scale Frame

The frame provides additional strength and a safe way to lift and move the scale. Foot plates on the frame ensure the AX-1 has a solid surface for accurate weighing. Top access foot adjustment holes in the top deck make it easy to achieve a level weighing surface after the scale has been placed.

• Sizes: 7.5 ft, 9.5 ft or 11.5 ft lengths
• Capacity: 50,000 lb
• Includes (2) 1-8 NC eye bolts
• Contains four environmentally sealed, IP67, 20,000 lb single-ended load cells
• Treaded top plate
• JB4SS TuffSeal® signal trim top access junction box
• Top access foot adjustment holes
• Carbon steel captured ball feet
• 20 ft SURVIVOR® EL147HE cable
• Non-Legal for Trade

Options:

• Ramps: 10 × 4 ft, treaded top plate
• Scale frame
