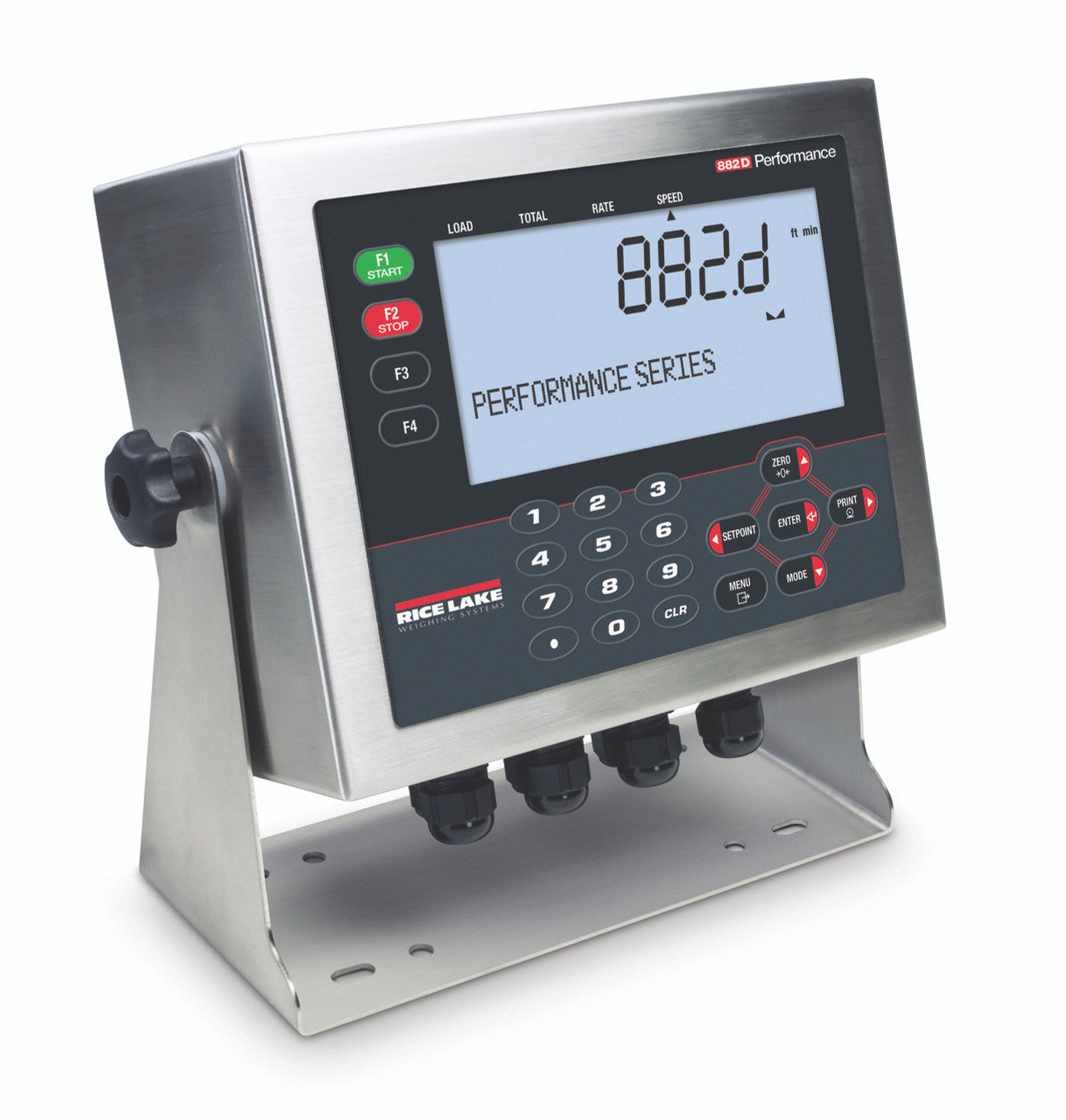

Belt scales used in demanding industries like mining, bulk material blending, and sand or gravel quarries require instrumentation that can keep up. The tough yet compact 882D belt scale integrator is engineered to provide straightforward, accurate data in a wide range of environments — even hazardous locations.

Designed with advanced programming capabilities and an I/O option, the 882D can be customized to manage product dosing and metering. A built-in web server allows users to take advantage of remote monitoring and functionality, while communicating with other equipment or a PLC is made possible with the 882D’s fieldbus interface.

A backlit display makes for easy viewing of rate, speed and time, even in lighting conditions where a screen would typically be difficult to read. The 882D’s IP66 stainless steel enclosure protects the instrument from severe weather and is well-suited for exposure to harsh environments. Whether you are belt weighing for process control or a truck, barge or rail loadout application, you can rely on the 882D for durable performance in every setting.

Indicator only, scale base sold separately.

• LCD display, 0.8 in seven-digit, seven-segment weight display, 3 x 20 pixelated prompt area


• RS-232 or RS-485 serial port


• USB device port connects directly to a PC


• Ethernet TCP/IP polled or continuous


• AC or DC models


• Hardware slot for two option card


• Operator functions through menu key for audit trail, preset tare, accumulator, time & date and setpoints


• Built-in web server for remote access, systems integration and data monitoring


• Audit trail tracking for configuration and calibration changes. Password protection for user and configuration changes.


• Setpoints for control and alarms


• Four onboard digital I/O channels


• Four programmable ticket formats up to 1,000 characters


• Filter settings for light, medium and heavy noise


• Speed inputs
