Standard Features
• Painted mild steel
• Diamond tread scale top plate and ramps
• Live siderails
• Self-centering ball and load receiver plate load introduction
• EL204 signal trim top access junction box

Specifications
End Load Capacity: 100% full scale at 2000 lb
Cable Length: 20ft (6.1m) for connecting junction box to indicator
Threaded Eyebolt: Two holes (1/2-20 NF)

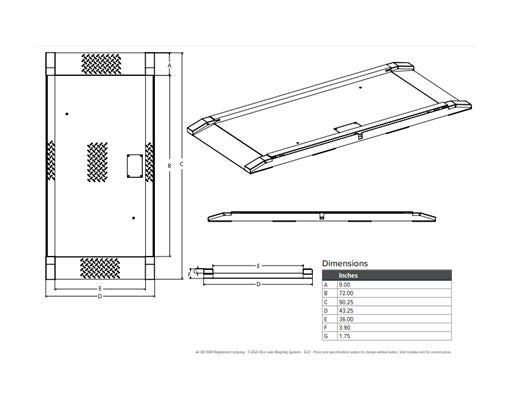

Weighing Surface Dimensions: (W x L x H) 36.00 in x 72.00 in x 2.10 in
Scale Dimensions: (W x L x H) 43.25 in x 90.25 in x 3.90 in
Load Cells: Model RL32018 alloy steel, environmentally sealed IP66
Warranty: Two-year limited warranty

Order Now or Call an Industrial Scale Specialist Toll Free at 877-65-SCALE !
