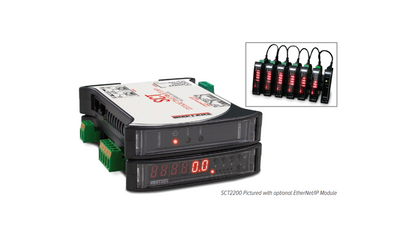

Rice Lake 202104-AN SCT-2200 Signal Conditioning Transmitter -Regulatory Modes w/ Analog Output, 12-24VDC, and RS485/232 Serial Port DIN Mount Regulatory Modes.
Rice Lake 202104-AN SCT-2200 Signal Conditioning Transmitter -Regulatory Modes w/ Analog Output, 12-24VDC, and RS485/232 Serial Port DIN Mount Regulatory Modes.
SKU:202104
Couldn't load pickup availability
This item has been discontinued, call for replacement: 182589
Order Now or Call a Digital Indicator Specialist at 877-65-SCALE !
Standard Features
• HUB Mode connects up to 16 transmitters to one fieldbus
• Quick menu for real and theoretical calibration
• Remote access through web browser for weight monitoring and calibration over EtherNet/IP, Profinet and Modbus TCP network
• Red LED display with six-digits (8 mm) and six LEDs show active functions
• DIN rail mountable
• Configurable calibration and setup parameters from keyboard
• Calibration using linearization points
• Reading of the net, gross and tare weights, clearing, semi-automatic and
presettable tare, scale switch, setting of outputs application thresholds
• Diagnostic information via serial port, message display, printing, simulation of key pressure, Modbus RTU
• Two RS-485 ports for “daisy-chain” network connections
• Printer management on second serial port available
• Multi-range function allows for subdividing the scale capacity in two, each up to 3,000 divisions
• Modbus RTU ASCII protocol
Downloads
| Brochure: | sct-2200-signal-transmitters-brochure.pdf |
|---|---|
| Specifications: | sct-2200-signal-conditioning-transmitter-specs.pdf |
| Description Tag | Rice Lake 202104-AN SCT-2200 Signal Conditioning Transmitter -Regulatory Modes w/ Analog Output, 12-24VDC, and RS485/232 Serial Port DIN Mount Regulatory Modes. |
|---|---|
| ID | 10037 |
| Width | 0 |
| Depth | 0 |
| Height | 0 |
| Price | 485 |
| Cost Price | 0 |
| Retail Price | 0 |
| Sale Price | 459 |
| Tax Class ID | 0 |
| Brand ID | 158 |
| Condition | New |
| View Count | 147 |
| SKU | 202104 |
| Custom Product | false |
| UDF Name 1 | POWER |
| UDF Name 2 | EXCITATION VOLTAGE |
| UDF Name 3 | DIGITAL INPUTS/OUTPUTS |
| UDF Value 1 | 12/ 24VDC |
| UDF Value 2 | 5VDC |
| UDF Value 3 | Two inputs: 12/24 VDC Two outputs:150 mA 48 VAC/ 150 mA 60 VDC |
| Cart Price | 327.2500 |
| Amazon Brand | Rice Lake Weighing Systems |
| Brand Google | RICE LAKE WEIGHING SYSTEMS |
| Ship Length | 15.0000 |
| Ship Width | 15.0000 |
| Ship Height | 10.0000 |
| UDF Name 1 | POWER |
| UDF Name 2 | EXCITATION VOLTAGE |
| UDF Name 3 | DIGITAL INPUTS/OUTPUTS |
| UDF Value 1 | 12/ 24VDC |
| UDF Value 2 | 5VDC |
| UDF Value 3 | Two inputs: 12/24 VDC Two outputs:150 mA 48 VAC/ 150 mA 60 VDC |
| Cart Price | 327.2500 |
| Amazon Brand | RICE LAKE WEIGHING SYSTEMS |
| Brand | RICE LAKE WEIGHING SYSTEMS |
| Dimension Length | 15.0000 |
| Dimension Width | 15.0000 |
| Dimension Height | 10.0000 |
