Rice Lake 201553 Ready-n-Weigh CW-90XB Bench Scale and 482 Plus Indicator Package - 10 lb/5 kg, 10" x 10" x 4.25", 90-264 VAC, LCD, Numeric, Euro Plug-Type E
Rice Lake 201553 Ready-n-Weigh CW-90XB Bench Scale and 482 Plus Indicator Package - 10 lb/5 kg, 10" x 10" x 4.25", 90-264 VAC, LCD, Numeric, Euro Plug-Type E
SKU:201553
Regular price
$1,846.20 USD
Regular price
$2,172.00 USD
Sale price
$1,846.20 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

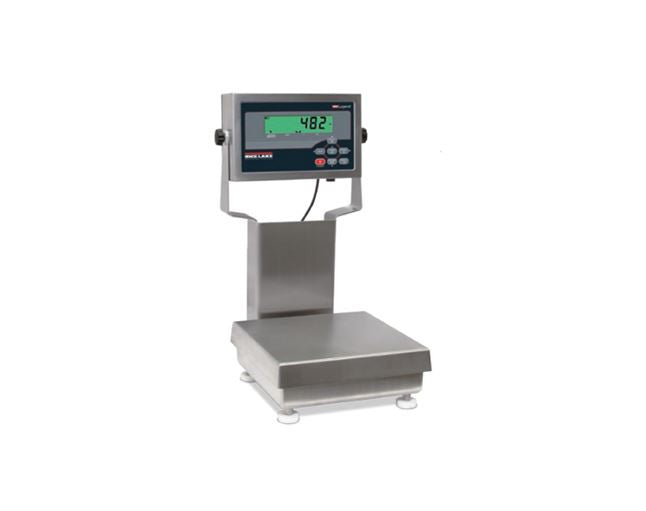

Ready-n-Weigh Bench Scale System CW-90XB Bench Scale and 482/482 Plus Indicator Package
Standard Features
• Package includes scale with IP69K stainless steel hermetically sealed load cell with an indicator and 12-inch column
• Factory calibrated, with indicator setup and configured for 5,000 divisions
• Scale includes rubber feet to provide exceptional traction and avoid scratching surfaces along with removable top cover for ease of cleaning
• AC Power 100-240 VAC
• Internal rechargeable battery power ideal for portable applications
• LCD backlit indicator display for a variety of environments
• Battery backed time and date
• Standard RS-232 serial ports for connecting to peripherals
• Ethernet TCP/IP, sold as an option
CW-90XB Specifications
Load Cell, NTEP Certified: IP69K stainless steel and hermetically sealed
Scale Construction: 304 stainless steel
Maximum Overload: 180 to 200% depending on capacity
Overload Protection: Five-point, independently adjusted
Scale Frame: AISI304L, straight line finish, Ra = 45 +/- 10
Scale Cover: AISI304L, straight line finish, Ra = 45 +/- 10
Cable Length: 34 in
Compensated Temperature Range: 14° F to 104° F (-10° C to 40° C)
Approvals: NTEP CC 95-072, Class III 5,000 d, Measurement Canada AM-5082, Class III 5,000 d, Load cell is FM approved
Scale Warranty: Three-year limited warranty (includes water ingress)
Indicator Warranty: Two-year limited warranty
482/482 Plus Specifications
Communication Ports: Com 1: RS-232 full duplex, Com 2: RS-232 full duplex or 20 mA simplex, continuous. Both ports 1200, 2400, 4800, 9600, 19200, 38400 baud seven or eight data bits, even, odd or no parity
Optional Ethernet and USB Board: USB five-pin header for PC, printer or flash drive, Ethernet TCP/IP, RJ45 jack, server and client ports
Display: LCD backlit display, Transmissive/Transflective, 0.8 in (20 mm), six-digit, seven-segment
Status Annunciators: Gross, net, center of zero, standstill, lb, kg, tare, preset tare
Keys/Buttons: Flat membrane panel, embossed keys, tactile feel
Rating/Material: Enclosure: NEMA Type 4X/IP66, heavy-gauge stainless steel
Approvals: NTEP CC 12-123, Measurement Canada AM-5892, CE Marked, UL/cUL Listed
Standard Features
• Package includes scale with IP69K stainless steel hermetically sealed load cell with an indicator and 12-inch column
• Factory calibrated, with indicator setup and configured for 5,000 divisions
• Scale includes rubber feet to provide exceptional traction and avoid scratching surfaces along with removable top cover for ease of cleaning
• AC Power 100-240 VAC
• Internal rechargeable battery power ideal for portable applications
• LCD backlit indicator display for a variety of environments
• Battery backed time and date
• Standard RS-232 serial ports for connecting to peripherals
• Ethernet TCP/IP, sold as an option
CW-90XB Specifications
Load Cell, NTEP Certified: IP69K stainless steel and hermetically sealed
Scale Construction: 304 stainless steel
Maximum Overload: 180 to 200% depending on capacity
Overload Protection: Five-point, independently adjusted
Scale Frame: AISI304L, straight line finish, Ra = 45 +/- 10
Scale Cover: AISI304L, straight line finish, Ra = 45 +/- 10
Cable Length: 34 in
Compensated Temperature Range: 14° F to 104° F (-10° C to 40° C)
Approvals: NTEP CC 95-072, Class III 5,000 d, Measurement Canada AM-5082, Class III 5,000 d, Load cell is FM approved
Scale Warranty: Three-year limited warranty (includes water ingress)
Indicator Warranty: Two-year limited warranty
482/482 Plus Specifications
Communication Ports: Com 1: RS-232 full duplex, Com 2: RS-232 full duplex or 20 mA simplex, continuous. Both ports 1200, 2400, 4800, 9600, 19200, 38400 baud seven or eight data bits, even, odd or no parity
Optional Ethernet and USB Board: USB five-pin header for PC, printer or flash drive, Ethernet TCP/IP, RJ45 jack, server and client ports
Display: LCD backlit display, Transmissive/Transflective, 0.8 in (20 mm), six-digit, seven-segment
Status Annunciators: Gross, net, center of zero, standstill, lb, kg, tare, preset tare
Keys/Buttons: Flat membrane panel, embossed keys, tactile feel
Rating/Material: Enclosure: NEMA Type 4X/IP66, heavy-gauge stainless steel
Approvals: NTEP CC 12-123, Measurement Canada AM-5892, CE Marked, UL/cUL Listed
