Rice Lake
Rice Lake 201159 Ready-n-Weigh CW-90B Bench Scale and 480 Indicator Package - 25 lb/10 kg, 10" x 10" x 4.25", 115 VAC, LED, US Plug-Type B
Rice Lake 201159 Ready-n-Weigh CW-90B Bench Scale and 480 Indicator Package - 25 lb/10 kg, 10" x 10" x 4.25", 115 VAC, LED, US Plug-Type B
SKU:201159
Regular price
$1,258.00 USD
Regular price
$1,480.00 USD
Sale price
$1,258.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

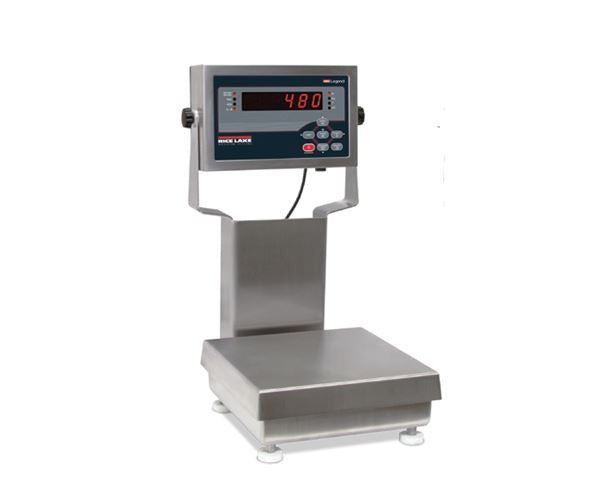

Ready-n-Weigh Bench Scale System CW-90B Bench Scale and 480 Indicator Package
Standard Features
• Package includes scale with IP67 aluminum environmentally sealed load cell with an indicator and 12-inch column
• Factory calibrated, with indicator setup and configured for 5,000 divisions
• Scale includes rubber feet to provide exceptional traction and avoid scratching surfaces along with removable top cover for ease of cleaning
• AC Power 100-240 VAC
• Numeric keypad (480 Plus)
• Battery backed time and date
• Standard RS-232 serial ports for connecting to a variety of peripherals
• Ethernet TCP/IP, sold as an option
CW-90B Specifications
Load Cell, NTEP Certified: IP67 aluminum, environmentally sealed
Scale Construction: 304 stainless steel
Maximum Overload: 180% to 200% depending on capacity
Overload Protection: Five-point, independently adjusted
Scale Frame: AISI304L, straight line finish, Ra = 45 +/- 10
Scale Cover: AISI304L, straight line finish, Ra = 45 +/- 10
Cable Length: 34 in
Compensated Temperature Range: 14° F to 104° F (-10° C to 40° C)
Approvals: NTEP CC 95-072, Class III 5,000 d, Measurement Canada AM-5082, Class III 5,000 d, Load cell is cFMus Approved
Warranty: Two-year limited warranty
480/480 Plus Specifications
Communication Ports: Com 1: RS-232 full duplex, Com 2: RS-232 full duplex or 20 mA simplex, continuous. Both ports 1200, 2400, 4800, 9600, 19200, 38400 baud seven or eight data bits, even, odd or no parity
Optional Ethernet and USB Board: USB five-pin header for PC, printer or flash drive. Ethernet TCP/IP, RJ45 jack, server and client ports.
Display: LED display 0.8 in (20 mm), six-digit, seven-segment
Status Annunciators: Gross, net, center of zero, standstill, lb, kg, tare, preset tare
Keys/Buttons: Flat membrane panel, embossed keys, tactile feel
Rating/Material: Enclosure: NEMA Type 4X/IP66, heavy-gauge, stainless steel
Approvals: NTEP CC 12-123, Measurement Canada AM-5892, CE Marked, UL/cUL Listed
Standard Features
• Package includes scale with IP67 aluminum environmentally sealed load cell with an indicator and 12-inch column
• Factory calibrated, with indicator setup and configured for 5,000 divisions
• Scale includes rubber feet to provide exceptional traction and avoid scratching surfaces along with removable top cover for ease of cleaning
• AC Power 100-240 VAC
• Numeric keypad (480 Plus)
• Battery backed time and date
• Standard RS-232 serial ports for connecting to a variety of peripherals
• Ethernet TCP/IP, sold as an option
CW-90B Specifications
Load Cell, NTEP Certified: IP67 aluminum, environmentally sealed
Scale Construction: 304 stainless steel
Maximum Overload: 180% to 200% depending on capacity
Overload Protection: Five-point, independently adjusted
Scale Frame: AISI304L, straight line finish, Ra = 45 +/- 10
Scale Cover: AISI304L, straight line finish, Ra = 45 +/- 10
Cable Length: 34 in
Compensated Temperature Range: 14° F to 104° F (-10° C to 40° C)
Approvals: NTEP CC 95-072, Class III 5,000 d, Measurement Canada AM-5082, Class III 5,000 d, Load cell is cFMus Approved
Warranty: Two-year limited warranty
480/480 Plus Specifications
Communication Ports: Com 1: RS-232 full duplex, Com 2: RS-232 full duplex or 20 mA simplex, continuous. Both ports 1200, 2400, 4800, 9600, 19200, 38400 baud seven or eight data bits, even, odd or no parity
Optional Ethernet and USB Board: USB five-pin header for PC, printer or flash drive. Ethernet TCP/IP, RJ45 jack, server and client ports.
Display: LED display 0.8 in (20 mm), six-digit, seven-segment
Status Annunciators: Gross, net, center of zero, standstill, lb, kg, tare, preset tare
Keys/Buttons: Flat membrane panel, embossed keys, tactile feel
Rating/Material: Enclosure: NEMA Type 4X/IP66, heavy-gauge, stainless steel
Approvals: NTEP CC 12-123, Measurement Canada AM-5892, CE Marked, UL/cUL Listed
Order Now or Call an Industrial Scale Specialist Toll Free at 877-65-SCALE !
Brochures
rice-lake-ready-n-weigh-cw90b-with-480-package-brochure
