Standard Features
• Top access JB4SS TuffSeal® signal trim junction box
• Foot adjustment holes for leveling scale from above
• Four ball encapsulated feet
• Four IP66, alloy steel 10,000 lb load cells

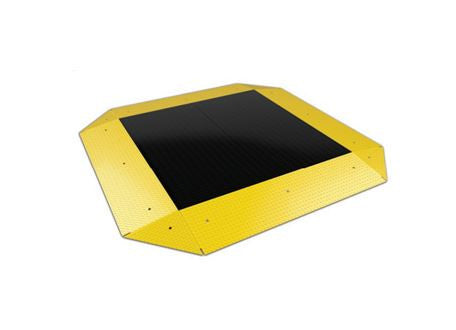

• Epoxy paint for added protection. Ramps are painted yellow and scale is painted black to easily distinguish live weighing surface.
• 20 ft SURVIVOR® EL147HE hostile environment load cell cable to connect scale to indicator. Cable can exit scale/ramp from any corner.
• Scale and wraparound ramps to access scale from all sides
• Ramps have integrated foot keeper plates to keep scale in check with ramps
• Holes in ramps to access internal anchor tabs from above. 16 anchor bolts at 3/4  in included
• All surfaces are diamond tread

Specifications

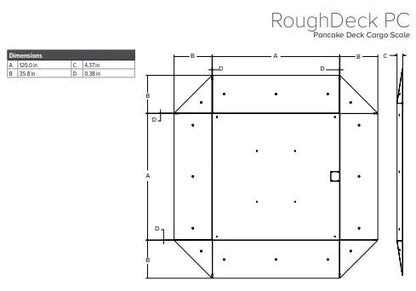

Scale: 10 ft x 10 ft x 4 3/8 in
Ramps: (4) 10 ft x 3 ft x 4 3/8 in
Corners: (4) 4 ft 1 in x 3 ft x 4 3/8 in
End Load Capacity: 100% full scale at 20,000 lb
Cable Length: 20 ft (6.1 m) for connecting junction box to indicator
Ramp Incline Angle: 6.5 degrees
Threaded Eyebolt: Four holes (3/4-10NC)
Warranty (limited): RoughDeck PC weldment five years, load cells two years, all other components one year
