Ohaus

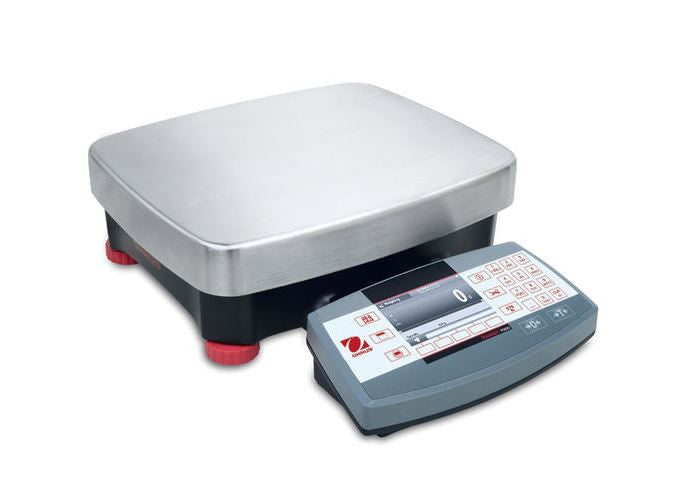

Ohaus 30212873 R71MD60 Ranger® 7000 Compact Bench Scale - 150 x 0.002 lb

Ohaus 30212873 R71MD60 Ranger® 7000 Compact Bench Scale - 150 x 0.002 lb

SKU:30212873

Regular price $1,914.40 USD
Regular price $2,393.00 USD Sale price $1,914.40 USD
Sale
Call for Pricing
Shipping calculated at checkout.

Top-of-the-Line Compact Scales for Even the Most Complex Industrial Applications





  • Simplify complex applications and minimize the need for manual calculations with 10 advanced application modes, peripheral device control and an optional kit for a second scale platform.




  • The most precise scale in its class with one-second stabilization time, up to 75,000 d or 350,000 d display resolution and legal-for-trade certifications.




  • Extremely durable scale designed to thrive in rugged industrial environments. Features IP54-rated metal housing and sealed metal terminal.




Order Now or Call an Industrial Scale Specialist Toll Free at 877-65-SCALE!


Product Specifications






































































































































Maximum Capacity 60 kg (150 lb)
Readability 1 g (0.002 lb)
Readability (Certified) 10 g (0.02 lb)
Platform Size (Length) 311 mm (12.2 in)
Platform Size (Width) 377 mm (14.8 in)
Battery Life 12 Hours with Rechargeable Battery
Dimensions (Width) 377 mm (14.9 in)
Working Environment 14°F – 104°F, 80%RH, non-condensing
Working Environment -10°C – 40°C, 80%RH, non-condensing
Dimensions (Height) 128 mm (5 in)
Internal Calibration Not Applicable
Display 4.3’’/10.9cm TFT Graphic LCD
Power Rechargeable Battery (Not Included); AC Power (Included)
Net Weight 9.9 kg (21.8 lb)
Outputs 2 In/4 Out digital I/O
Inuse cover Included
Legal for Trade NTEP Certified; Measurement Canada Approved
Communication 2nd RS232 (Available as an Accessory); Ethernet (Available as an Accessory);
USB (Included); RS232 (Included)
Protection Rating IP54
Second Scale Input Yes
Platform Construction Stainless Steel
Dimensions (Length) 467 mm (18.4 in)
Tare Range To capacity by subtraction
Units of Measurement Gram; Kilogram; Pound; Ounce; Custom; Pound: Ounce
Test Weight 60kg, OIML F2 or ASTM CL 4
Linearity ± 2 g
Transportation Case Not Applicable
Product will be used On a Table; Mobile Usage; Work in Industrial; Outdoor
Main Purpose Legal for Trade; Differential Weighing; Formulation; Filling; Percent Weighing;
Check Weighing; Data Communication; Weigh Below; Counting; Density Determination
Market Worlds Industrial
Key Features GLP GMP; Indicator Platform Separated; Battery; LFT;Printer
Typical Areas In advanced Checkweighing applications;Logistics and general high resolution weighing;
In general weighing and advanced counting
