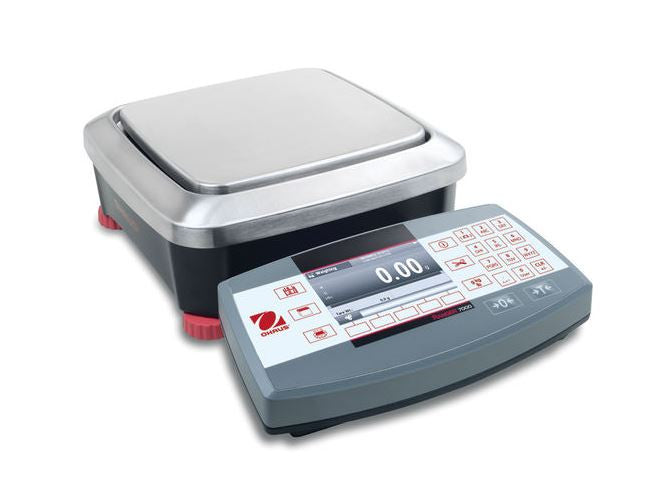

Ohaus 30088841 R71MHD6 Ranger® 7000 Compact Bench Scale - 15 x 0.00005 lb

Ohaus 30088841 R71MHD6 Ranger® 7000 Compact Bench Scale - 15 x 0.00005 lb

SKU:30088841

$3,395.20 USD
$4,244.00 USD $3,395.20 USD
Sale
Call for Pricing
Shipping calculated at checkout.

Top-of-the-Line Compact Scales for Even the Most Complex Industrial Applications





  • Simplify complex applications and minimize the need for manual calculations with 10 advanced application modes, peripheral device control and an optional kit for a second scale platform.




  • The most precise scale in its class with one-second stabilization time, up to 75,000 d or 350,000 d display resolution and legal-for-trade certifications.




  • Extremely durable scale designed to thrive in rugged industrial environments. Features IP54-rated metal housing and sealed metal terminal.




Order Now or Call an Industrial Scale Specialist Toll Free at 877-65-SCALE!


Product Specifications






































































































































Maximum Capacity 6 kg (15 lb)
Readability 0.02 g (0.00005 lb)
Readability (Certified) 0.2 g (0.0005 lb)
Platform Size (Width) 210 mm (8.3 in)
Platform Size (Length) 210 mm (8.3 in)
Battery Life 9 Hours with Rechargeable Battery
Inuse cover Included
Working Environment 50°F – 85°F, 80%RH, non-condensing
Working Environment 10°C – 30°C, 80%RH, non-condensing
Dimensions (Length) 420 mm (16.5 in)
Dimensions (Width) 280 mm (11 in)
Net Weight 7.2 kg (16 lb)
Dimensions (Height) 114 mm (4.5 in)
Display 4.3’’/10.9cm TFT Graphic LCD
Legal for Trade NTEP Certified; Measurement Canada Approved
Second Scale Input Yes
Test Weight 6kg, OIML F2 or ASTM CL 4
Platform Construction Stainless Steel
Power Rechargeable Battery (Not Included); AC Power (Included)
Linearity ± 0.04 g
Units of Measurement Gram; Kilogram; Pound; Ounce; Custom; Pound: Ounce
Communication 2nd RS232 (Available as an Accessory); Ethernet (Available as an Accessory);
USB (Included); RS232 (Included)
Protection Rating IP54
Outputs 2 In/4 Out digital I/O
Transportation Case Not Applicable
Internal Calibration InCal™ - Semi Automatic
Tare Range To capacity by subtraction
Market Worlds Industrial
Typical Areas In advanced Checkweighing applications;Logistics and general high resolution weighing;
In general weighing and advanced counting
Key Features GLP GMP; Indicator Platform Separated; Battery; LFT; Printer
Main Purpose Legal for Trade; Differential Weighing; Formulation; Filling;
Percent Weighing; Check Weighing; Data Communication;
Weigh Below; Counting;Density Determination
Product will be used On a Table; Mobile Usage; Work in Industrial; Outdoor
