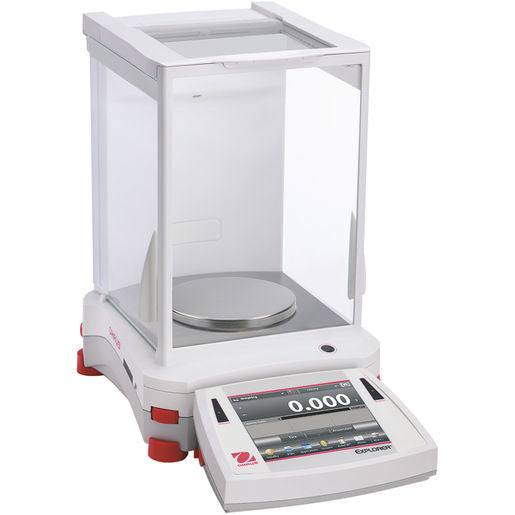

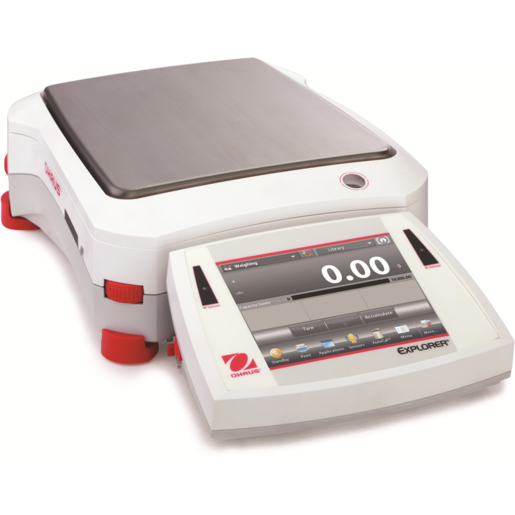

Flagship Balances from OHAUS

Equipped with a weighing cell that's precision-machined from a solid metal block, Explorer® balances are extremely accurate and durable, and are ideal for laboratory and industrial environments.

•


  Features such as four-level user management with password protection and a non-editable system log plus a high level of configuration make Explorer® balances well suited for regulated applications.





•


  A detachable terminal with a large color touchscreen, programmable IR sensors, and a frameless draftshield make Explorer® precision balances easy and convenient to use.




Geared for high performance with up to 0.01 mg readability and capacities up to 220 g. The AutoCal™ Internal Calibration system ensures accuracy of results in applications that require high precision. AutoCal™ fully automatic internal calibration system included on all models, fast stabilization time, four touchless sensors, built-in ionizer with automatic door models, 14 operating languages, save to USB function, menu lock switch, security bracket, integral weigh below hook for below balance weighing applications, removable stainless steel weighing platform, stability indicator, overload and underload indicators, auto standby.

Explorer's weighing cells are precision-machined from a solid metal block and, together with AutoCal™, provide exceptional accuracy and durability suitable for laboratory and industrial environments.
Equipped with a color touchscreen display that enhances the user-experience. In addition, touchless sensors, automatic draftshield doors (on select models) and ionizer ensure the integrity of results.
A detachable terminal with a large color touchscreen, programmable IR sensors, optional built-in Ionizer and automatic doors, and a frameless draftshield make Explorer balances easy & convenient to use.

Order Now or Call an Industrial Scale Specialist Toll Free at 877-65-SCALE!

Product Specifications

Maximum Capacity	2,200 g
Readability	0.01 g
Pan Size (Length)	190 mm (7.5 in)
Pan Size (Width)	200 mm (8 in)
Internal Calibration	Not Applicable
Draftshield	—
Test Weight	2000g, OIML F1 or ASTM CL 2
Auxiliary Display Model	Available as an Accessory
Additional transport costs	No
Battery Life	Not Applicable
Linearity ±	0.02 g
Inuse cover	Included
Tare Range	To capacity by subtraction
Minimum Weight (USP, 0.1%, typical)	16 g
Pan Construction	Stainless Steel
Dimensions (Height)	98 mm (3.9 in)
Dimensions (Width)	230 mm (9.1 in)
Stabilization Time	1 s
Dimensions (Length)	393 mm (15.5 in)
Display	Full-color 5.7 in VGA, touch screen
Legal for Trade	Not Applicable
Power	AC Adapter (Included)
Working Environment	10°C – 30°C, 85%RH, non-condensing
Communication	Ethernet (available as an accessory); USB (Included); RS232 (Included)
Repeatability, typical	0.01 g
Net Weight	4.3 kg (9.5 lb)
Working Environment	50°F – 86°F, 85%RH, non-condensing
Units of Measurement	Singapore Tael; Ounce Troy; Pennyweight; Grain; Kilogram; Tical; Custom; Milligram; Momme; Newton; Baht; Taiwan Tael; Gram; Hong Kong Tael; Pound; Tola; Mesghal; Carat; Ounce
Main Purpose	Differential Weighing; Pipette Calibration; Formulation; Filling; Percent Weighing; Check Weighing; Data Communication; Weigh Below; Counting;Density Determination; Statistics/SQC
Market Worlds	Pharmacy;Laboratory
Key Features	GLPGMP; Indicator Platform Separated; LFT; Printer
Product will be used	On a table; Work in Industrial; Classroom
Typical Areas	In a classroom
Gross Weight (Shipping)	5 kg
Net Weight (Shipping)	5 kg
Length (Shipping)	55 cm (21.6 in)
Width (Shipping)	38.5 cm (15.15 in)
Height (Shipping)	29.2 cm (11.50 in)
