Delivering Outstanding Performance in the Most Demanding Environments

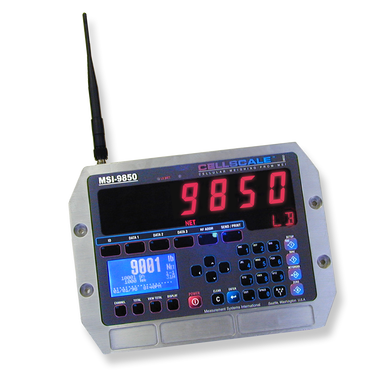

The MSI-9850 RF digital weight indicator is the latest addition to complement MSI’s CellScale™ technology. Combined with one or more MSI CellScale™ components, the MSI-9850 serves as a wireless remote controller and weight indicator providing remote access to multiple scales and sensors in a configured CellScale™ network.

All CellScale™ component features are supported remotely by the MSI-9850, including calibration, data-logging, totalizing and statistics. The MSI-9850 features a large primary weight display that is easily viewed from a distance and a secondary information display that provides complete visibility to all selected scales and sensors configured in a CellScale™ network.

The MSI-9850 also provides a simple user interface to all of the advanced features of CellScale™ wireless technology. Enhanced data acquisition, sophisticated data-logging, and remote control of multiple scales and sensors can be initiated and managed through the MSI-9850. Rugged industrial packaging and flexible-mounting options allow the MSI-9850 to easily integrate and provide outstanding performance in the most demanding applications. Also see specifications for other CellScale™ components: MSI-9000, MSI-9020, MSI-9750A, and MSI-6260CS, MSI-9300, and MSI-9300HT crane scales for complete capabilities and solutions provided through CellScale™ technology.

• Compatible with MSI-6260CS, MSI-9300 and MSI-9000 CellScale™


• Six-digit 1.2 in (30 mm) LED display


• 1.4 in x 2.6 in (36 mm x 67 mm) information LCD display


• 2.4 GHz spread spectrum transceiver


• RS-232 data I/O with real-time clock


• NEMA Type 4, IP65 enclosure


• Power input 85-265 VAC, 47-440 Hz / 130-300 VDC; 8 ft/2.4 m power cable included (NA plug standard)
