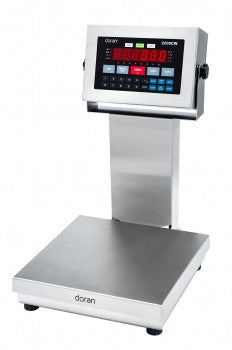

The 2200CW SS Series is designed for speed, durability, and versatility — a smart choice for a range of weighing applications. Fast and accurate checkweighing to boost bottom line performance — by improving accuracy and decreasing shortages or giveaways. Add Doran QC Weigh software to automate and validate QC procedures, and improve production staff accountability.

The system features a responsive keypad, rugged stainless steel construction, and IP69K classification for washdown protection — with components that are built in the USA. A large selection of Doran power options, scanners, and communications and networking equipment, and other accessories. Plus, add Doran ionSuite™ software for real-time data collection and efficient production.

Prompts and process control for measuring ingredients and ensuring user-defined tolerances are met for each ingredient every time. An auto learning setpoint feature compensates for changing process inputs and the system can interface with existing load cells. The 2200CW provides precision measurements from .01g to 100,000 pounds.

The 2200 CW SS is made with 304 stainless steel construction with a Quad-Spring shock-absorbing base design that provides 1000% overload protection in scale bases from 8" x 8" to 15" x 15" — and provides 300% overload protection in bases 18" x 18" and larger. In a complete 2200CW weighing system, all components act as a defense against the damaging effects of shock, water, abuse, and other environmental factors that can cause costly repairs and production downtime. Connect, control, and communicate to any device or computer with the two standard RS-232 ports, eight standard outputs, two standard inputs, or a wide range of communication options.

Connect with our wired Ethernet, Wireless Ethernet, Bluetooth, USB, 4-20mA. Connect, control, and communicate to any device or computer with the two standard RS-232 ports, eight standard outputs, two standard inputs, or a wide range of communication options.

• 800 Product ID’s, containing checkweigh limits, unit of measure, accumulator and counter values, tare, two data fields, checkweigh operation, and output configuration
• Ethernet, WiFi, Bluetooth 4.0, USB, 4-20mA communication options
• Three and Five band checkweighing
• Two RS-232 ports
• Two remote switch outputs.
• Eight outputs
• Responsive full numeric keypad that is easy to operate, even when wearing gloves
• Units of Measure: scroll to use scale in lb, oz, lb:oz, kg, and g
• Use with up to eight 350-ohm load cells, ideal for interface with floor scales or tank and hopper scales
• Large 0.8” bright LED display
• WinSPC compatible
