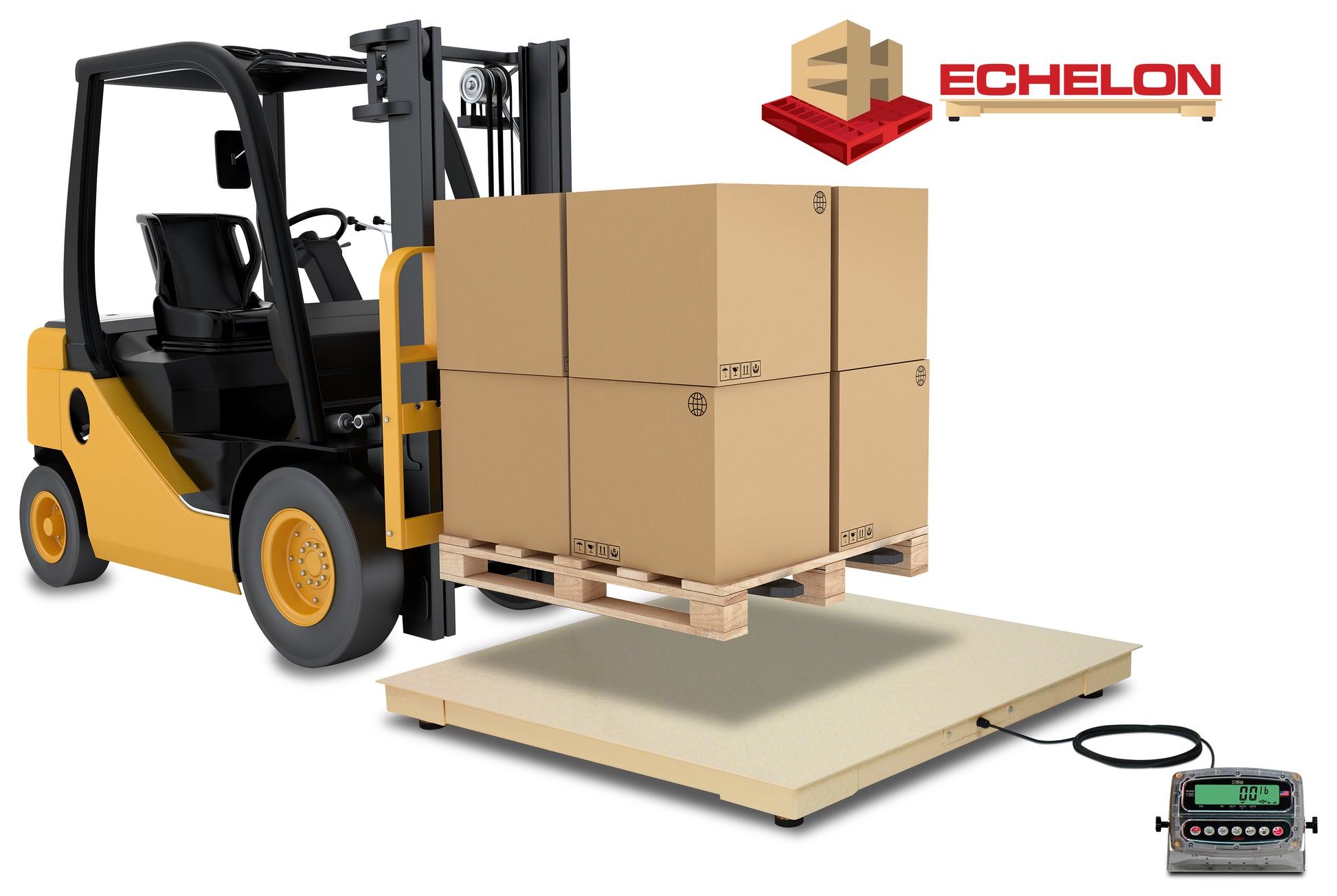

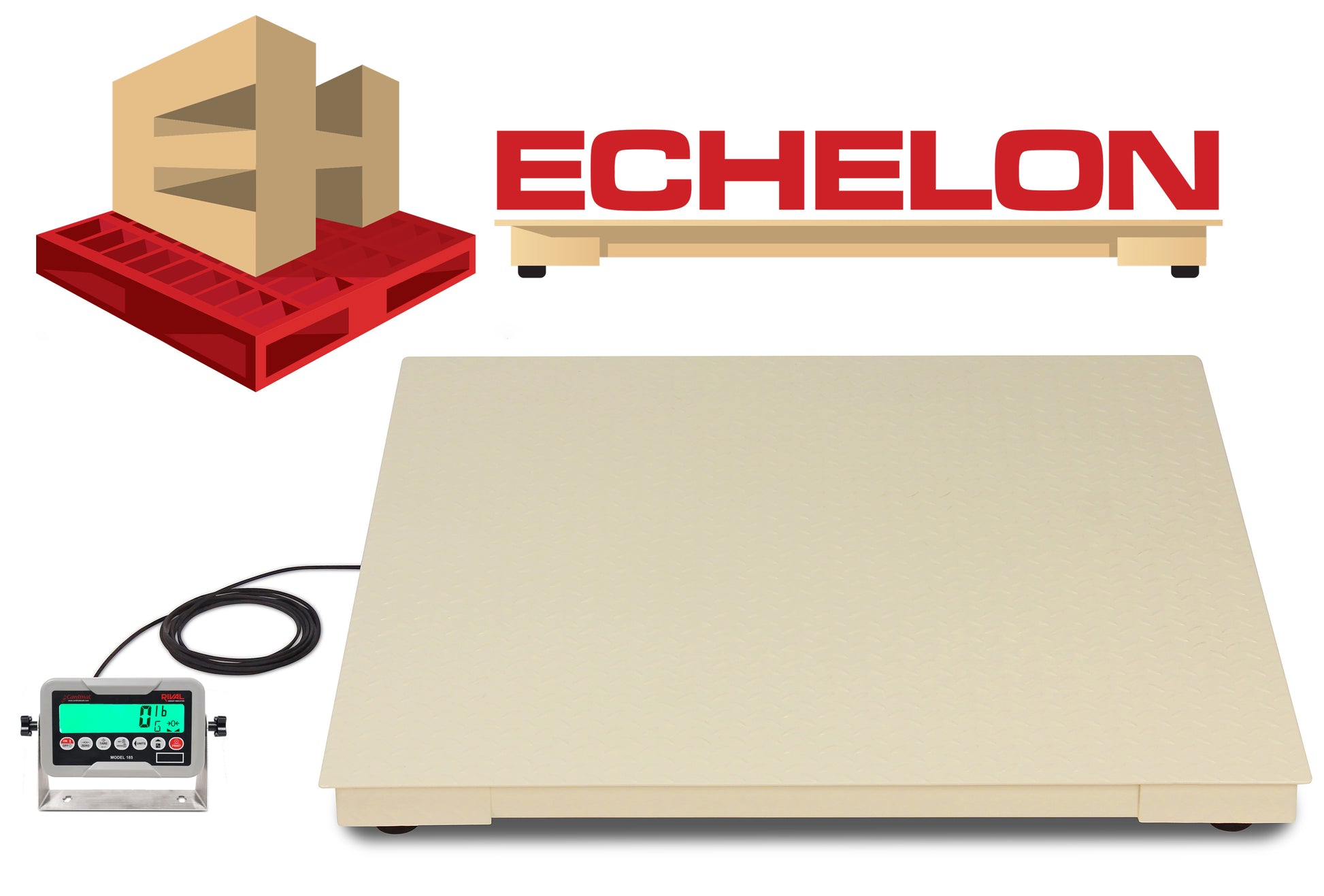

Cardinal Scale’s Echelon EH floor scales provide exceptional performance in light industrial and NTEP legal-for-trade applications for warehouses, logistics operations, processing plants, and shipping/ receiving departments. Ideally suited for pallet, drum, and package weighing, the Echelon’s checkered carbon steel deck tread-plate with powder-coat paint handles rugged industrial weighing use. The EH series features 4-ft-square platforms, 5,000 lb x 1 lb and 10,000 lb x 2 lb capacities, NTEP-approved IP67 waterproof anti-corrosion shear beam load cells, 3/16”-thick checkered steel deck, 2.2-in/5.6-cm diameter rubber feet, and durable structural steel channel.

• 3/16-Inch-Thick Checkered Steel Deck Protection
• 4 x 4 ft Checkered Steel Deck Platform
• 5000 lb x 1 lb or 10000 lb x 2 lb Capacity
• Durable Structural Steel Channel
• High-Quality Economical Floor Scales
• Industrial Tan Powder Paint
• Load Cell Feet Swivel to Find Level Ground
• NTEP Legal for Trade
• NTEP-Approved Alloy Steel Shear Beam Load Cells
• Ramps Available (model EH-501E)
• Rubber Load Cell Footings
• Side-Access Junction Box
• Calibration with an Indicator available at an additional cost
