Standard Features

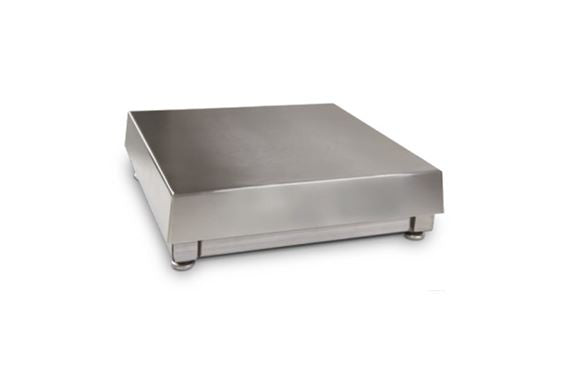

• 304 stainless steel frame and cover

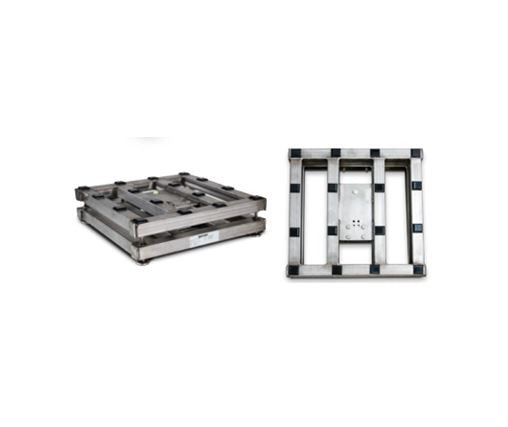

• Base design isolates load cell from overloads and shock loads for added durability
• Specially designed adjustable support feet provide exceptional traction and will not scratch surfaces

Specifications
Load Cell, NTEP Certified: IP66 aluminum, environmentally sealed
Output Impedance: 350 ohm
Maximum Overload: 150% to 200% depending on capacity
Overload Protection: Five-point, independently adjusted
Scale Frame: AISI304L, glass bead blasted for even appearance
Scale Cover: AISI304L, straight line finish, Ra=45 +/- 10
Cable Length: 10 ft (3 m)
Compensated Temperature Range: 14° F to 104° F (-10° C to 40° C)
Warranty: Two-year limited warranty
Approvals: NTEP CC 95-072, Class III, 5,000 d, Measurement Canada AM-5082, Class III, 5,000 d
