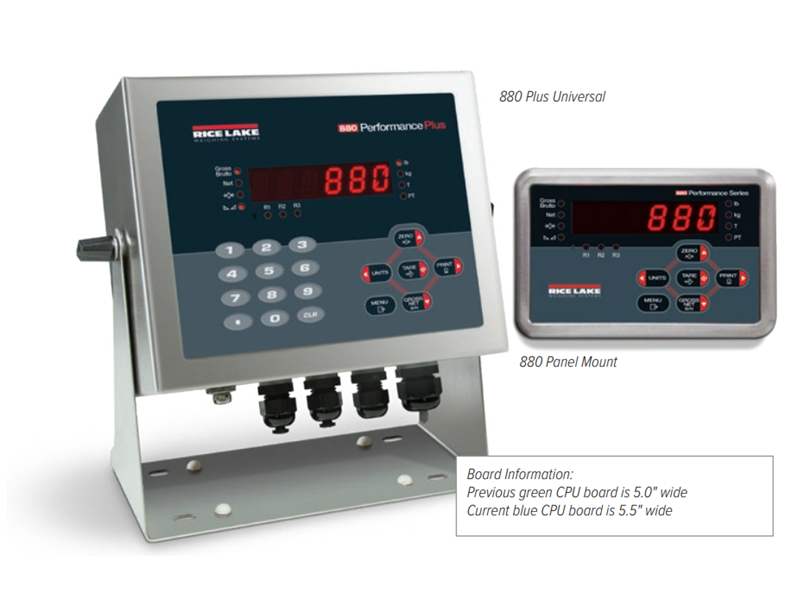

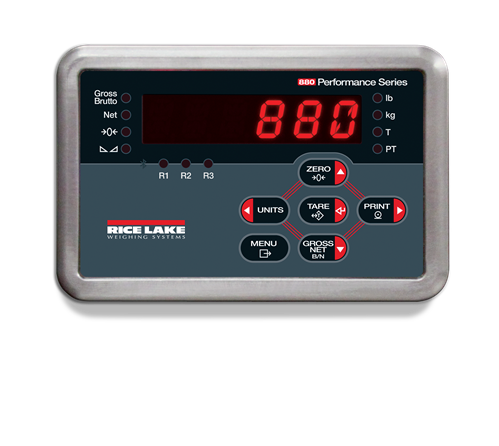

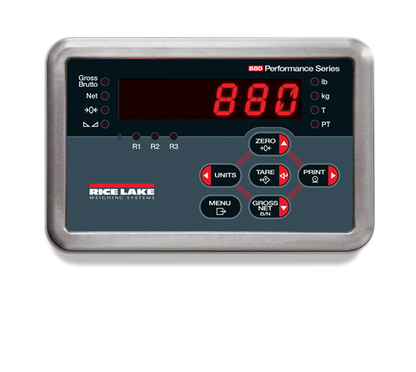

Rice Lake 151674 880/880 Plus Performance™ Series Programmable Weight Indicator/Controller

Standard Features
• LED display, 0.56 in (14 mm), six-digit, 14-segment
• RS-232 or RS-485 serial port
• USB device port connects directly to a PC
• USB host port for connecting keyboard or flash drive (v4.00 or newer)
• Ethernet TCP/IP polled or continuous
• AC or DC models
• Built-in DIN-rail clips on controller box (panel mount)
• Display and controller can be separated up to 250 ft (panel mount)
• Hardware slot for one option card
• Operator functions through menu key for audit trail, preset tare, accumulator, time & date and setpoints
• Audit trail tracking for configuration and calibration changes. Password protection for user and configuration changes.
• 20 set points with latched batch engine or unlatched outputs
• Four onboard digital I/O channels
• Programmable ticket formats up to 1,000 characters for header text, gross, net, accumulator and setpoints
• Five-point linearization calibration
• Local/remote operation
• Multi-range or multi-interval weighing
• Filter settings for light, medium and heavy noise

Options
• Analog output, relay board and fieldbus connectivity
• AOP (Add On Profile) for EtherNet/IP and more extended configuration files PROFINET, PROFIBUS, DeviceNet and EtherCAT (v4.01 and newer)
• Dual serial output, 24-channel digital input/output (v4.00 and newer)
• Truck in/out program for 100 vehicle IDs
• Adapter plate for converting 310 A and 520 panel mounts
• Panel mount kit for universal enclosure
