A manufacturing plant doesn't need one scale — it needs the right scale at each point where material changes hands: receiving, production, picking, inventory counts, quality control, and shipping. An incorrect weight at any of those points compounds downstream: a miscounted bin becomes a short customer order, an off-spec fill weight becomes a rejected lot.

This guide covers the main weighing applications in a manufacturing operation — order picking, cycle counting, production line weighing, receiving, and outbound verification — and the scale types built for each: bench, floor, counting, checkweighing, and forklift/pallet jack scales.

Receiving and Raw Material Verification

Weight verification at the dock is the cheapest quality check in the building — it catches supplier shortages and billing discrepancies before material ever enters stock.

Floor scales for palletized loads: Low-profile floor scales in 4' x 4' or 5' x 5' platforms with 2,500–10,000 lb capacities verify full pallets against packing slips as they come off the truck. Diamond-tread decks and ramp access let pallet jacks roll loads on and off without a forklift.

Forklift scales for weigh-in-motion receiving: A forklift scale mounted on the carriage weighs every load during the move itself, eliminating the extra trip to a floor scale. For high-volume receiving, that saved trip per pallet adds up to hours of forklift time per week.

Pallet jack scales where forklifts don't fit: Pallet jack scales combine a standard hand truck with a 5,000 lb capacity scale reading in 1–2 lb increments — practical for congested staging areas and trailer interiors.

Bench scales for sampled goods: Incoming components, fasteners, and packaging get spot-checked on bench scales at the receiving desk before the lot is accepted into inventory.

Production Line Weighing and Batching

On the line, the scale is a process control instrument, not just a measuring device — resolution and speed have to match the tolerance of the step.

Bench scales at workstations: Bench scales in 6–150 lb capacities with readabilities from 0.0002 lb to 0.05 lb handle ingredient weighing, component kitting, and fill-by-weight steps at individual stations. Stainless steel platforms and IP-rated housings hold up where the line gets washed down or dusty.

Floor scales for batch and mixing stations: Drum and tote batching runs on floor scales with indicators that support tare, accumulation, and target weighing, so an operator can build a multi-ingredient batch on one platform without manual math.

Checkweighing at fill and pack points: Checkweighing scales compare each unit against a preset target with over/under/accept limits, signaling out-of-tolerance packages by display color or audible alarm before they reach a case. Static checkweighers suit manual pack stations; in-motion units check product on the conveyor without stopping the line.

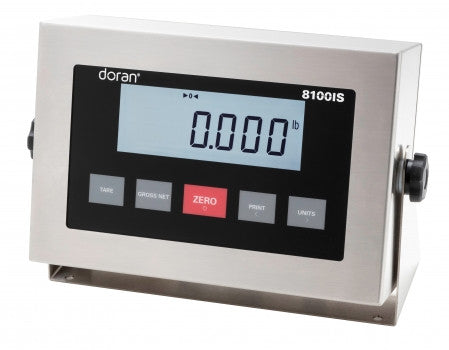

Data out, not just weight out: Most current indicators offer RS-232, USB, or Ethernet output, so line weights feed directly into batching records, SPC software, or the ERP instead of a clipboard. AAA Weigh configures indicator communications as part of setup — in 47 years of installs, unconfigured data ports are among the most common wasted features the team finds on plant floors.

Order Picking with Counting Scales

Counting parts by hand is slow and, past a few dozen pieces, unreliable. A counting scale converts piece weight into piece count: the operator weighs a hand-counted sample (typically 10–25 pieces), the scale computes the average piece weight, and every subsequent scoop displays as a quantity.

Speed at the pick face: An order for 500 washers becomes one pour and one glance instead of a five-minute hand count — and pick accuracy stops depending on who's counting.

Resolution is the spec that matters: Many counting scales can use high internal resolution — commonly 1:600,000 counts or better — so they can resolve the tiny per-piece weight of small fasteners. The lighter and less uniform the part, the larger the sample size needed for an accurate average.

Check-counting for order verification: Many counting scales include a check mode that flags a picked quantity as under, over, or on target — effectively checkweighing by piece count at the packing bench.

Remote platform pairing: Pairing a counting indicator with a floor scale base lets one instrument count small samples on the built-in platform and full totes on the remote base — useful when picks range from bags of screws to bulk bins.

Cycle Counting and Inventory Control

Cycle counting only works if counts are fast enough to do continuously — which is exactly what scale-based counting delivers.

• Bin counts in seconds: With a counting scale, one operator counts a bin of thousands of identical parts in the time it takes to lift it onto the platform. That speed is what makes daily or weekly cycle counts practical instead of an annual wall-to-wall shutdown.
• Stored part libraries: Counting scales with alphanumeric part memory store piece weights and tare weights by SKU, so recounts skip the sampling step entirely — scan or key the part number and pour.
• Accuracy that survives an audit: Piece-weight counting removes the human error that plagues manual cycle counts, and printed or exported count records give inventory accuracy metrics a defensible paper trail.
• Whole-pallet inventory checks: For bulk raw material, a floor scale or forklift scale verifies remaining stock by weight — subtract the container tare, divide by unit weight, and book the count.

Quality Control, Checkweighing, and Compliance

For QA and compliance buyers, the scale's documentation matters as much as its display.

Fill-weight and net-content compliance: If packaged product is sold by weight, fill weights must satisfy net-content regulations — checkweighing scales at the pack line are the standard control for staying inside those tolerances without giving away product.

Legal-for-trade where the weight sets the price: Any weight used in a commercial transaction — selling product, scrap, or material by the pound — requires an NTEP-certified legal-for-trade scale that complies with NIST Handbook 44. Non-NTEP scales are fine for internal process control but cannot legally set a transaction price.

Calibration with accredited documentation: ISO 9001 and most customer audit programs require scheduled calibration with traceable records. AAA Weigh operates an ISO/IEC 17025:2017-accredited calibration laboratory and provides on-site calibration and repair service across Southern California, issuing certificates that hold up in an audit — a level of documentation most online scale sellers cannot provide at all.

Watch for drift, not just failure: The most common problem AAA Weigh technicians find in plants is not a dead scale but a drifting one — a bench scale reading 0.5% heavy quietly skews every batch it touches. Scheduled calibration catches drift before it becomes scrap.

Shipping and Outbound Verification

The last weighment in the building protects both freight cost and customer trust.

Shipping scales for parcels: Shipping scales at pack stations capture accurate parcel weights for carrier manifests, avoiding carrier reweigh adjustment fees on every underdeclared box.

Floor and pallet jack scales for LTL freight: Weighing pallets before the BOL is cut prevents carrier reweigh charges and keeps declared weights honest. A pallet jack scale lets the shipping team capture the weight during staging with no extra handling step.

Final order verification: Running a completed order across a counting or checkweighing scale before it's sealed catches short shipments at the cheapest possible point — before the truck leaves.

Frequently Asked Questions About Scales for Manufacturing

What types of scales are used in manufacturing?

The core lineup is bench scales for workstation weighing, floor scales for pallets and batching, counting scales for parts counting and inventory, checkweighing scales for target-weight verification, and forklift or pallet jack scales for weighing during material handling. Larger operations add crane scales, tank/hopper systems, and truck scales. AAA Weigh stocks all of these categories — over 5,300 SKUs — and can match the right type to each point in your process.

What's the difference between a counting scale and a regular bench scale?

A counting scale is a bench scale with much higher internal resolution and firmware that converts weight into piece count from a sampled average piece weight. A standard bench scale displays weight only. If operators count parts for picking, kitting, or cycle counts, a dedicated counting scale pays for itself quickly; AAA Weigh carries counting scales across capacities from a few pounds to remote-base systems for full totes.

How accurate are counting scales for cycle counting?

With a proper sample — typically 10–25 hand-counted pieces, more for very light or non-uniform parts — a quality counting scale counts to within a piece or two per thousand, far better than manual counting over a full shift. Accuracy depends on piece-weight uniformity and on the scale being calibrated; AAA Weigh's ISO/IEC 17025:2017-accredited lab calibrates counting scales to the tolerances the piece-count math depends on.

Do manufacturing scales need to be NTEP legal-for-trade?

Only if the weight determines a price — selling product, scrap metal, or raw material by weight. Internal process weighing, cycle counting, and QC checks don't require NTEP certification. If you do sell by weight, the scale must be NTEP-certified and placed in service per NIST Handbook 44. AAA Weigh stocks NTEP legal-for-trade scales and can advise which of your weighments legally require one.

How often should manufacturing scales be calibrated?

Most plants calibrate annually at minimum, with quarterly or semi-annual intervals for scales in critical QC or legal-for-trade service, plus a check after any relocation or repair. Daily verification with a test weight between calibrations catches drift early. AAA Weigh provides on-site calibration across Southern California with accredited certificates, and can set interval schedules based on how each scale is used.

Can manufacturing scales connect to our ERP or inventory system?

Yes — most current indicators output over RS-232, USB, or Ethernet, and many support continuous or on-demand transmission into WMS, ERP, and SPC software. The practical work is in configuration: data format, tare handling, and record triggers. AAA Weigh's technicians configure indicator communications as part of installation rather than leaving it to your IT team to reverse-engineer.

Should we buy or rent scales for a physical inventory or short production run?

For a one-time wall-to-wall inventory or a seasonal line, renting is usually the better answer — you get calibrated equipment for the weeks you need it without capitalizing an asset. AAA Weigh offers scale rentals including counting scales and floor scales, delivered calibrated and ready to count.

What capacity floor scale does a manufacturing plant need?

Size the scale to your heaviest realistic load plus margin — 5,000 lb covers most palletized work, while 10,000 lb suits heavy drums, dies, and machinery bases. Just as important is readability: a 5,000 x 1 lb floor scale suits shipping, while batching may call for finer resolution at lower capacity. Call AAA Weigh or fill out the contact form and the sales team will size the platform, capacity, and indicator to your actual loads.

Shop Manufacturing Scales at AAA Weigh

AAA Weigh has supplied, serviced, and calibrated industrial scales for Southern California manufacturers for 47 years. We stock bench, floor, counting, checkweighing, forklift, and pallet jack scales at our San Fernando and Ventura locations, with online ordering available — and because we run an ISO/IEC 17025:2017-accredited calibration lab and our own service technicians, we support every scale we sell for its whole working life.

If you're not sure which scales your operation needs, our team will ask about your parts, tolerances, and throughput and recommend the right equipment from an inventory of over 5,300 SKUs — no guesswork, no dropship lead times.

Browse Industrial Scales or click here to contact us for more information.
