Mechanical Scales: Types, Advantages, and When to Choose One

Digital scales get the attention, but mechanical scales still earn their place on receiving docks, farms, clinics, and production floors — no batteries, no load cell to fry, no display to fail. For plenty of applications, a well-built mechanical scale is the more reliable and lower-cost choice over its working life. This guide covers what mechanical scales are and how they work, where they outperform digital scales, the main types available, and how to maintain and calibrate them so they stay accurate for decades.

What Are Mechanical Scales and How Do They Work?

A mechanical scale measures weight using physical components — levers, springs, pivots, counterweights, or balance beams — instead of electronic load cells. The load deflects or balances the mechanism, and the result is read from a dial pointer or a beam with sliding poise weights. No electricity, batteries, or electronics are involved.

That simplicity is the whole engineering story, and it explains both the strengths and the limits:

• Beam and lever systems: Platform beam scales and triple beam balances work on the balance principle — the unknown load on one side is offset by known counterweights on the other. Because they compare masses directly, a properly maintained beam scale holds its accuracy for years and is largely immune to temperature swings and voltage fluctuations that can drift electronic readings.
• Spring and dial systems: Dial scales and hanging spring scales measure the deflection of a calibrated spring and translate it to a rotating pointer. They read faster than beam scales and are common in produce, shipping, and general-purpose weighing.
• Readability trade-off: Mechanical scales typically resolve to coarser graduations than digital equivalents — a mechanical bench beam scale might read to 1 oz where a digital bench scale reads to 0.05 lb or finer, and a triple beam balance reads to 0.1 g where an analytical balance reads to 0.0001 g. For applications that need that resolution, digital wins. For applications that don't, the mechanical scale's ruggedness usually matters more.

Where Mechanical Scales Still Beat Digital

The mechanical-versus-digital question isn't about which technology is "better" — it's about the environment and the job. After 47 years of servicing both, AAA Weigh sees the same handful of situations where mechanical is the right call:

• No power required: Mechanical scales work anywhere — remote agricultural sites, field weighing, outdoor yards, delivery routes, and facilities where running power to the weighing point is impractical or expensive. There are no batteries to die mid-shift and no charging routine to manage.
• Hazardous and explosive environments: Because a mechanical scale contains no electrical circuit, it introduces no ignition source. In areas with flammable dust, vapors, or solvents, a mechanical beam scale is often the simplest compliant option — no purge systems or barriers required. Where an electronic readout is genuinely needed in a classified area, AAA Weigh carries purpose-built intrinsically safe scales; where it isn't, mechanical avoids the problem entirely.
• Wet and washdown-adjacent areas: Water and electronics are a bad pairing. Mechanical dial scales shrug off humidity, hose spray, and condensation that would destroy an unsealed digital indicator. For direct high-pressure washdown under sanitation protocols, stainless washdown scales with IP-rated electronics are the right tool — but for damp receiving docks, coolers, and outdoor use, mechanical is the low-risk choice.
• Durability and lifespan: A cast-iron platform beam scale has no load cell to overload, no display to crack, and no circuit board to corrode. The most common failures AAA Weigh technicians see on these units are worn pivots and bent poises after decades of hard use — problems a service visit can fix. It is routine for a mechanical scale to outlast two or three generations of digital equipment.
• Simplicity and lower lifetime cost: No firmware, no error codes, no power supply failures. Operators can be trained on a beam scale in minutes, and when something does wear, the repair is mechanical and inexpensive. Purchase prices are typically lower than comparable digital units as well.

Where digital pulls ahead: fine readability, speed, data capture (connecting to printers, PCs, and inventory systems), and features like checkweighing, counting, and accumulation. If your process needs recorded weights or sub-gram resolution, go digital. If it needs a dependable reading in a tough environment, mechanical remains hard to beat.

Types of Mechanical Scales

AAA Weigh stocks mechanical weighing equipment across every major category. The main types:

• Mechanical platform and beam scales: The workhorse of the category — a floor-standing platform with a balance beam and sliding poise weights, typically in capacities from 100 lb up to 1,000 lb. Portable beam scales roll between weighing points on wheels, which makes them a fixture in feed stores, recycling yards, shipping rooms, and warehouses without power at the dock. NTEP-approved, legal-for-trade beam scale models are available for buying and selling by weight; see AAA Weigh's legal-for-trade NTEP scales for approved options.
• Mechanical dial scales: Bench and hanging scales that display weight on an analog dial. Common in produce receiving, portioning, shipping, and laundry applications where a fast, at-a-glance reading matters more than fine resolution. Hanging dial scales handle suspended loads — bags, carcasses, produce sacks — without any bench space at all.

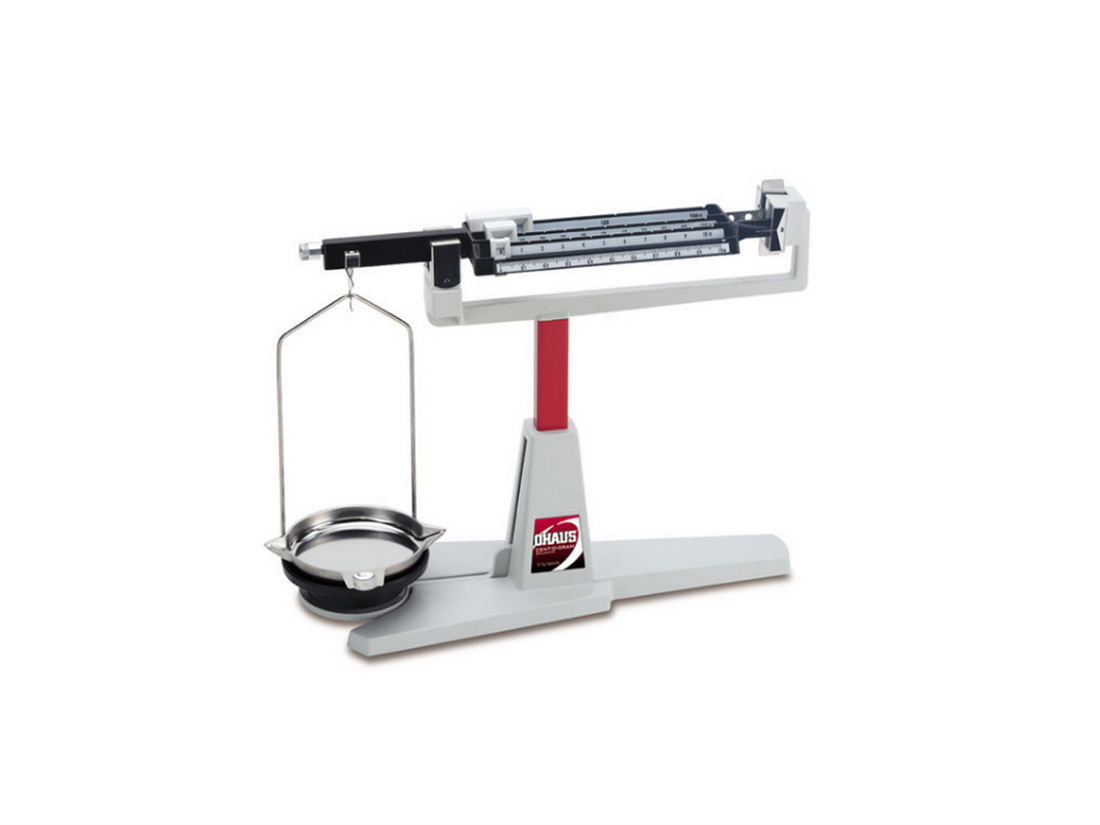

• Triple beam balances: The classic laboratory and classroom instrument — three parallel beams with sliding poises, usually 610 g capacity with 0.1 g readability, extendable to 2,610 g with attachment weights. Triple beams are still specified in education, soil and materials testing, and field labs precisely because they work anywhere and teach the principle of mass comparison. Browse AAA Weigh's triple beam balances for stocked models.
• Mechanical balances: Beyond the triple beam, this family includes double-beam and multi-position balances for pharmacy, veterinary, and general lab work. Mechanical balances suit facilities that want beam-balance reliability with application-specific capacities and formats — and they sit alongside the electronic balances AAA Weigh stocks when higher resolution is required.
• Mechanical physician and dial bathroom scales: Beam-style physician scales with height rods remain a fixture in medical offices for the same reasons they always have: no batteries, consistent readings, and decades of service life.

Maintenance and Calibration of Mechanical Scales

A mechanical scale's accuracy lives in its pivots, bearings, and knife edges. Keep those healthy and the scale will hold tolerance for years. AAA Weigh's service technicians recommend the following routine:

• Keep the mechanism clean: Dust, product debris, and corrosion on knife edges and pivot bearings are the number-one accuracy killer AAA Weigh's techs find in the field. Brush out the beam assembly and platform edges regularly, and keep lubricants away from knife edges — oil attracts grit and does more harm than good.
• Zero before every use: Check that the beam floats level or the dial rests on zero with the platform empty, and adjust the zero (tare) screw or balance ball as needed. A scale that won't hold zero usually has debris, a worn pivot, or a bent component that needs attention.
• Verify with certified test weights: Place a known weight — ideally an NIST-traceable Class F certified cast iron test weight — at several points across the capacity range (for example 25%, 50%, and 100% of capacity) and confirm the reading falls within the tolerance your process or Handbook 44 requires. Corner-test platform scales by placing the weight over each corner to catch lever or pivot wear.
• Adjust, don't guess: Mechanical calibration is a physical adjustment — repositioning counterweights, truing poises, or dressing pivots — not a keypad routine. If test weights show the scale reading heavy or light beyond tolerance, a qualified technician should make the correction and document it. AAA Weigh's calibration lab is ISO/IEC 17025:2017 & ANSI/NCSL Z540-1-1994 accredited (AC-1422), so the calibration certificate stands up in quality audits.
• Set a calibration interval: For commercial and quality-critical use, annual calibration is the practical minimum; legal-for-trade devices must also satisfy state Weights and Measures requirements, and heavily used or harsh-environment scales warrant semi-annual checks. AAA Weigh performs on-site mechanical scale calibration and repair across Southern California — schedule through the scale service and repair page or by phone at 800-394-6622.

Frequently Asked Questions About Mechanical Scales

Are mechanical scales accurate?

Yes — within their design resolution. A properly maintained beam scale compares masses directly and holds its accuracy for years without drift from temperature or power fluctuations. What mechanical scales lack is fine readability: expect graduations in ounces or tenths of a gram rather than the milligram resolution of electronic balances. AAA Weigh calibrates mechanical scales to NIST-traceable standards so buyers know exactly what tolerance their unit holds.

Are mechanical scales better than digital scales?

Neither is universally better. Mechanical scales win where there's no power, where electronics would be damaged or prohibited, and where decades of low-maintenance service matter. Digital scales win on readability, speed, and data connectivity. Many facilities run both — AAA Weigh stocks over 5,300 SKUs across mechanical and digital categories and can match the right technology to each weighing point.

Can a mechanical scale be legal for trade?

Yes. Mechanical beam scales with NTEP Certificates of Conformance meet NIST Handbook 44 requirements and can be used for buying and selling by weight, subject to your state Weights and Measures registration and inspection rules. AAA Weigh carries NTEP-approved mechanical models and handles the calibration and documentation legal-for-trade use requires.

How do you calibrate a mechanical scale?

Verification is done by placing certified test weights on the scale at several points across its range and comparing readings against tolerance. Correction is physical — adjusting the zero balance, counterweights, or poises, and addressing worn pivots. Because adjustments interact, out-of-tolerance mechanical scales are best corrected by a technician. AAA Weigh's ISO/IEC 17025:2017-accredited lab calibrates mechanical scales in-shop and on-site across Southern California.

How often should a mechanical scale be calibrated?

At least annually for commercial use, with semi-annual checks for scales in heavy or harsh service, plus a quick test-weight verification by operators on a weekly or monthly cadence. Legal-for-trade scales must also pass periodic Weights and Measures inspection. Call AAA Weigh at 800-394-6622 to set up a calibration schedule that satisfies your auditors.

What is a triple beam balance used for?

Triple beam balances measure mass to 0.1 g — typically up to 610 g, or 2,610 g with attachment weights — using three sliding poise weights on parallel beams. They're standard in classrooms, soil and materials testing, and field labs where a durable, power-free instrument beats a delicate electronic balance. AAA Weigh stocks triple beam balances and replacement attachment weights.

Do mechanical scales work in hazardous or washdown areas?

Mechanical scales contain no electrical components, so they add no ignition source in areas with flammable dust or vapors and nothing for moisture to short out in damp environments. For classified areas that require an electronic readout, or for direct high-pressure sanitation washdown, AAA Weigh also stocks intrinsically safe and stainless washdown scales — the sales team can confirm which approach your environment requires.

How long do mechanical scales last?

With basic cleaning and periodic calibration, mechanical scales routinely last 20 to 40 years — AAA Weigh technicians still service beam scales built decades ago. The wear points are pivots, bearings, and poises, all of which are repairable. That lifespan is a major reason mechanical scales remain the low total-cost option for simple weighing jobs.
